Networking Diagram

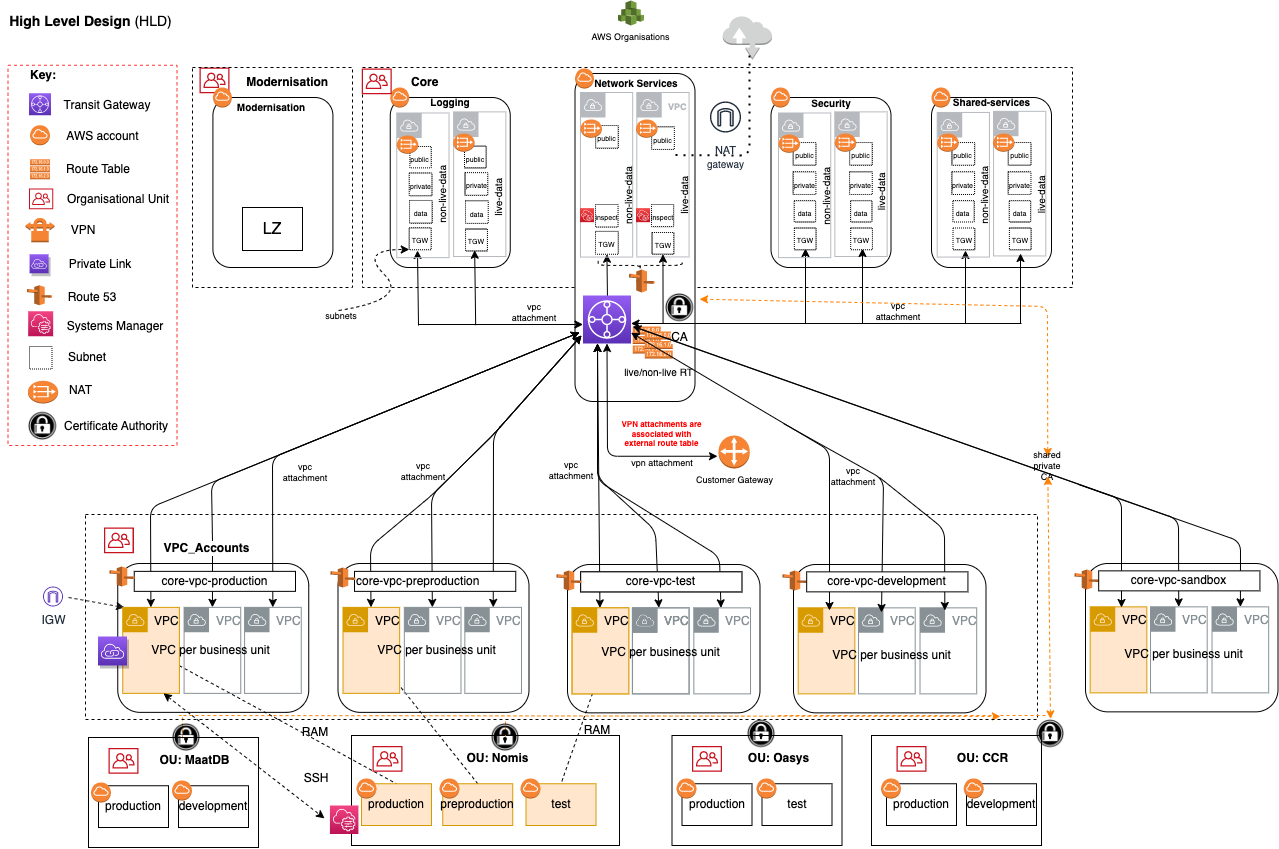

The diagram below gives a high level view of the platform environments and networking. For more detailed information on different areas, please see the environments and networking sections.

Environments and Network Diagram

Last reviewed: 5 December 2025Review status: ✓ Up to dateOwner: #modernisation-platformSource: View source on GitHub
